What is Fire Compartmentation?
Verus Group • 14 December 2023
Fire compartmentation is a fundamental concept in building design and safety, with the ultimate goal of protecting life and property. It involves dividing a building into distinct sections or compartments to contain the spread of fire and smoke, preventing it from moving freely throughout the entire structure. In turn, this gives occupants more time to escape, and firefighters the opportunity to control the fire.
Importance of Fire Compartmentation:
- Life Safety: The primary purpose of fire compartmentation is to protect lives. By limiting the fire's ability to spread quickly, occupants have more time to evacuate the building safely, reducing the risk of injury or death.
- Property Protection: Fire compartmentation not only safeguards lives but also protects property. It helps minimize the damage caused by fires, reducing the economic impact on building owners and insurers.
- Enhanced Firefighter Safety: Firefighters need time and controlled conditions to extinguish fires effectively. Fire compartmentation provides a more manageable environment, making it safer for first responders to enter and control the blaze.
- Legal Compliance: Building codes and regulations often require the implementation of fire compartmentation in commercial, industrial, and residential structures. Compliance with these codes is essential for obtaining occupancy permits and insurance coverage.
Key Components of Fire Compartmentation:
- Fire-Resistant Barriers: To achieve compartmentation, buildings are equipped with fire-resistant barriers such as walls, floors, doors, and ceilings. These barriers are constructed using materials that can withstand high temperatures and limit the movement of heat and smoke. Common materials include fire-rated gypsum board, concrete, and fire-resistant glass.

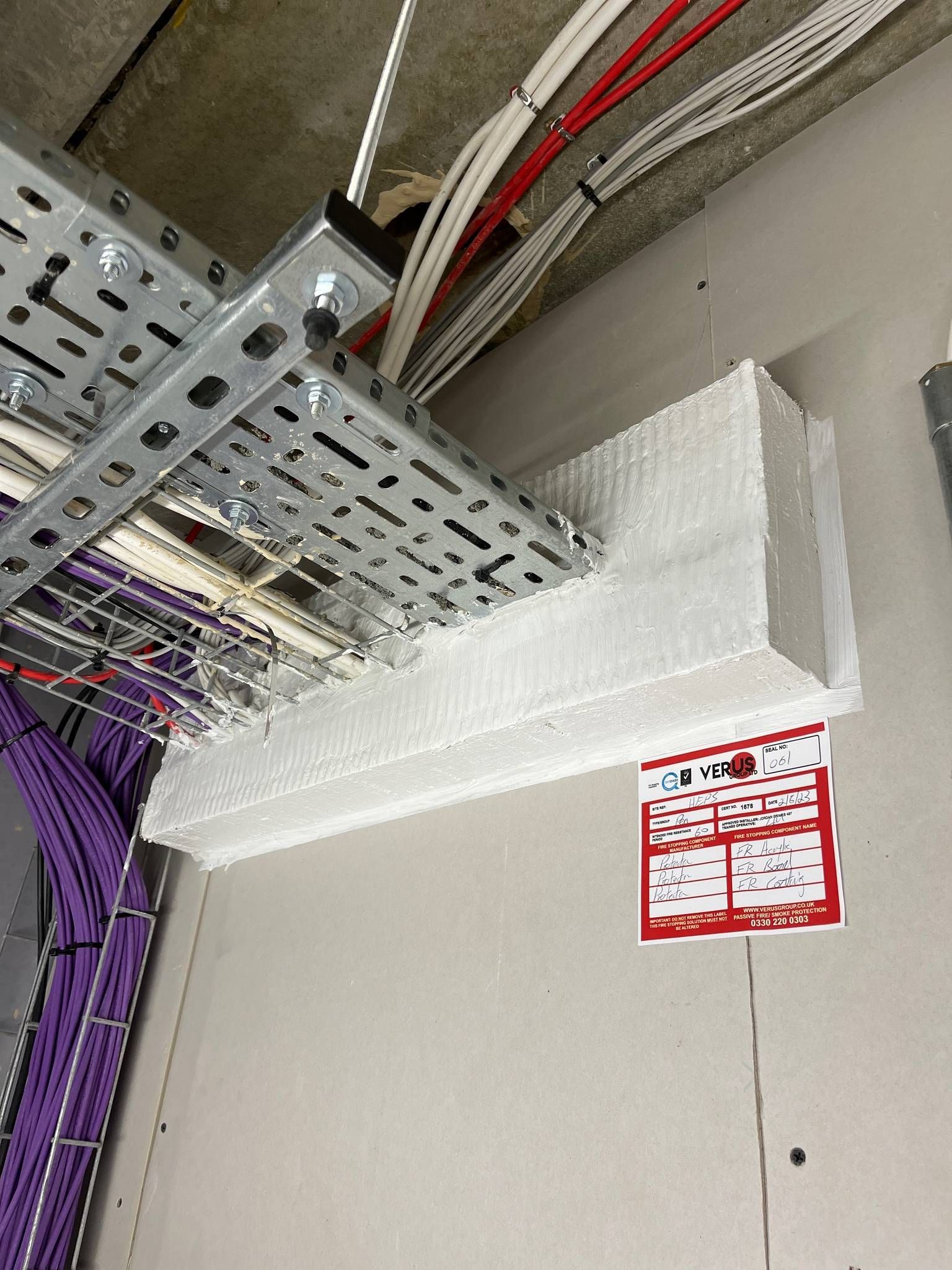

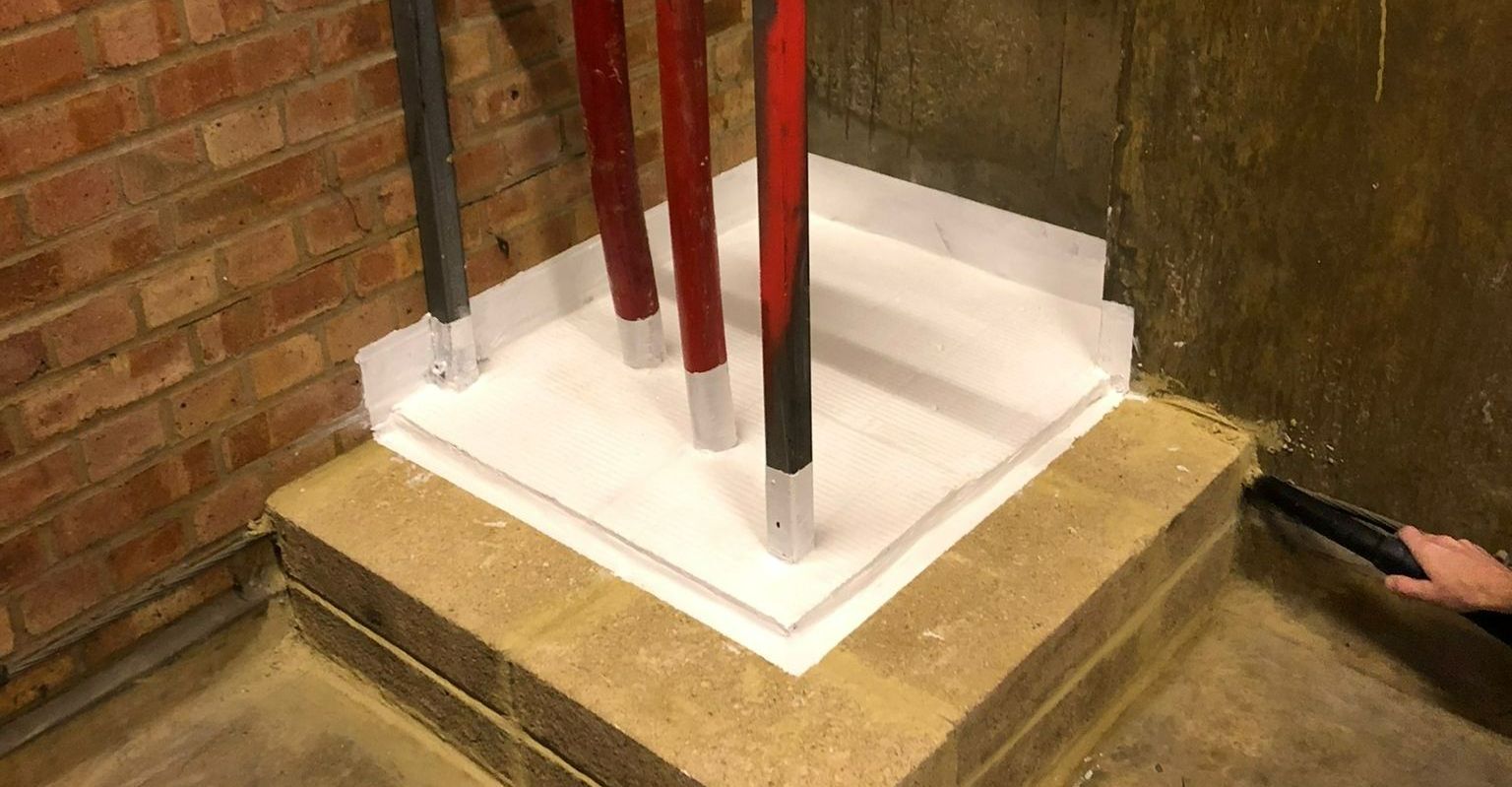

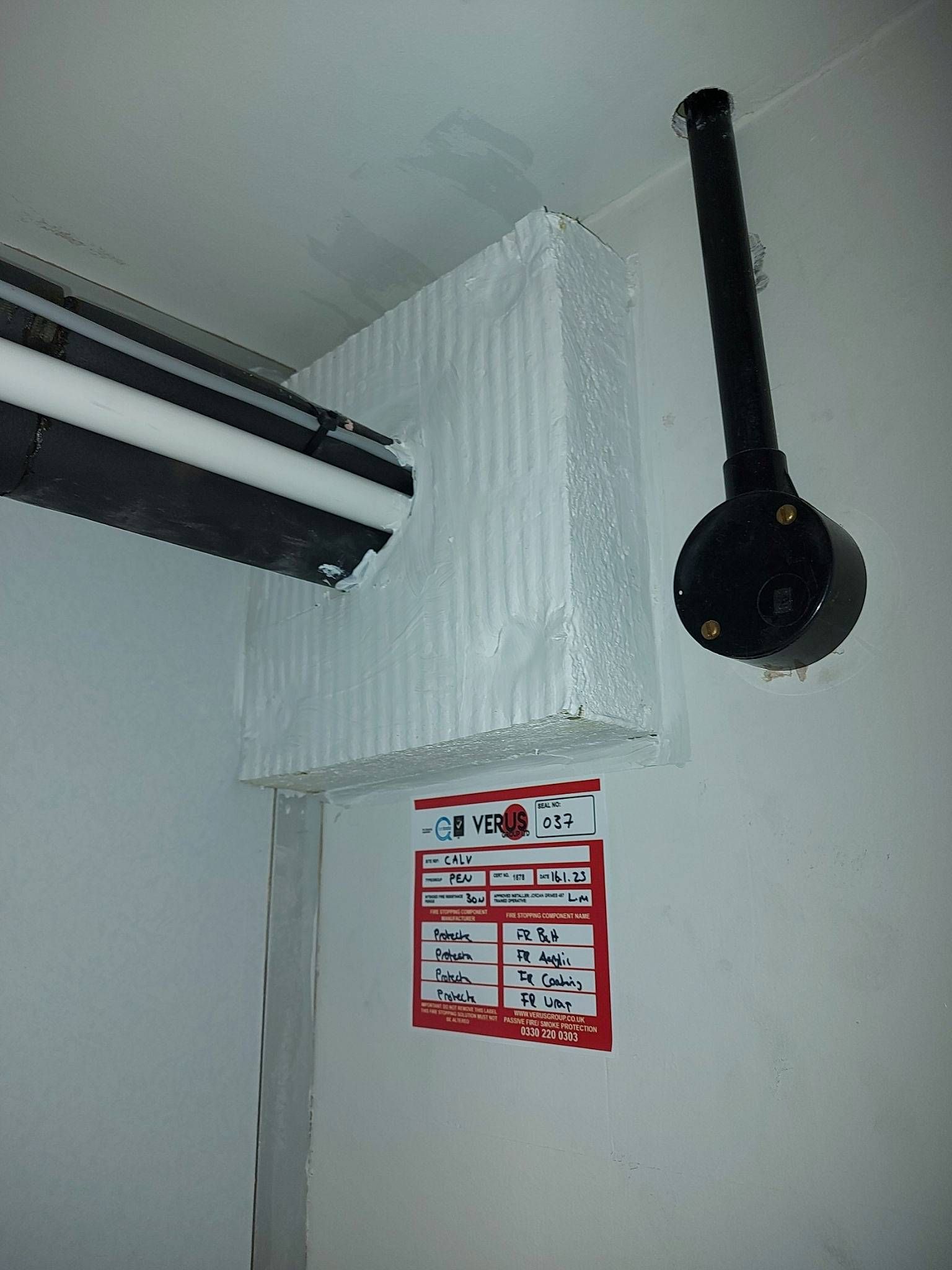

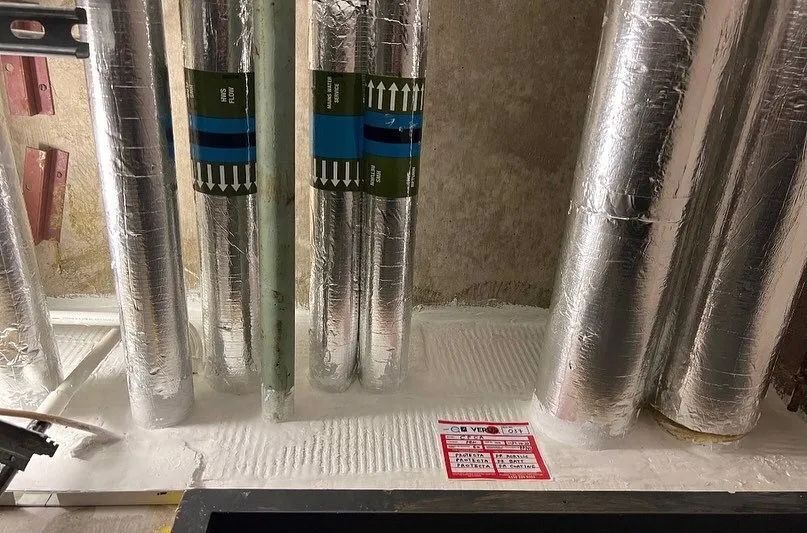

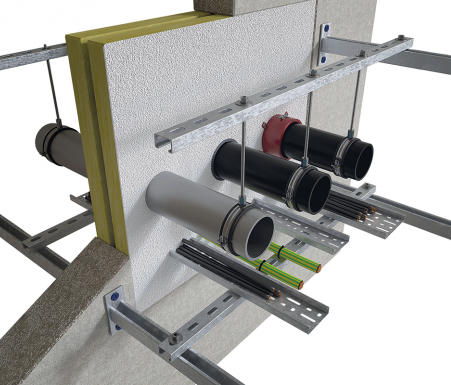

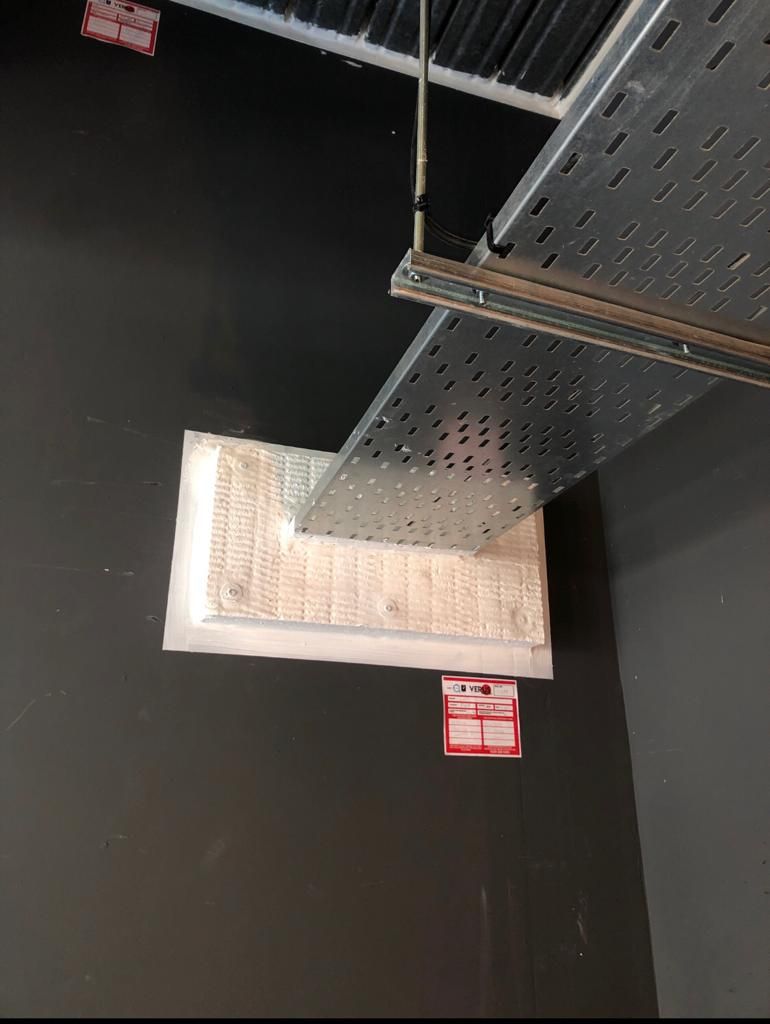

- Fire Stopping: Fire stopping is a crucial element of fire compartmentation and plays a significant role in ensuring the integrity of fire-resistant barriers and containment systems within buildings. It involves the installation of intumescent or fire-resisting materials and systems to seal penetrations and gaps in fire-rated walls, floors, and ceilings, thus preventing the passage of fire, smoke and hot gases from one compartment to another.
- Fire Doors: Fire Doors are an integral part of fire compartmentation. They are specially designed doors that will withstand intense heat and flames for a specified duration, providing a reliable exit path for building occupants whilst also preventing the fire from spreading further.
- Fire Dampers: In buildings with HVAC systems, fire dampers are crucial. These are mechanical devices that can close off or restrict air movement within ducts to prevent the spread of fire and smoke within a building's ventilation system.
Whilst fire compartmentation is a crucial element of fire safety, its effectiveness depends on regular inspections and maintenance. Over time, wear and tear, or building alterations, can compromise the integrity of fire-resistant barriers, doors, dampers, and fire stopping. Neglecting maintenance can render the compartmentation systems ineffective, increasing the associated risks in case of a fire.

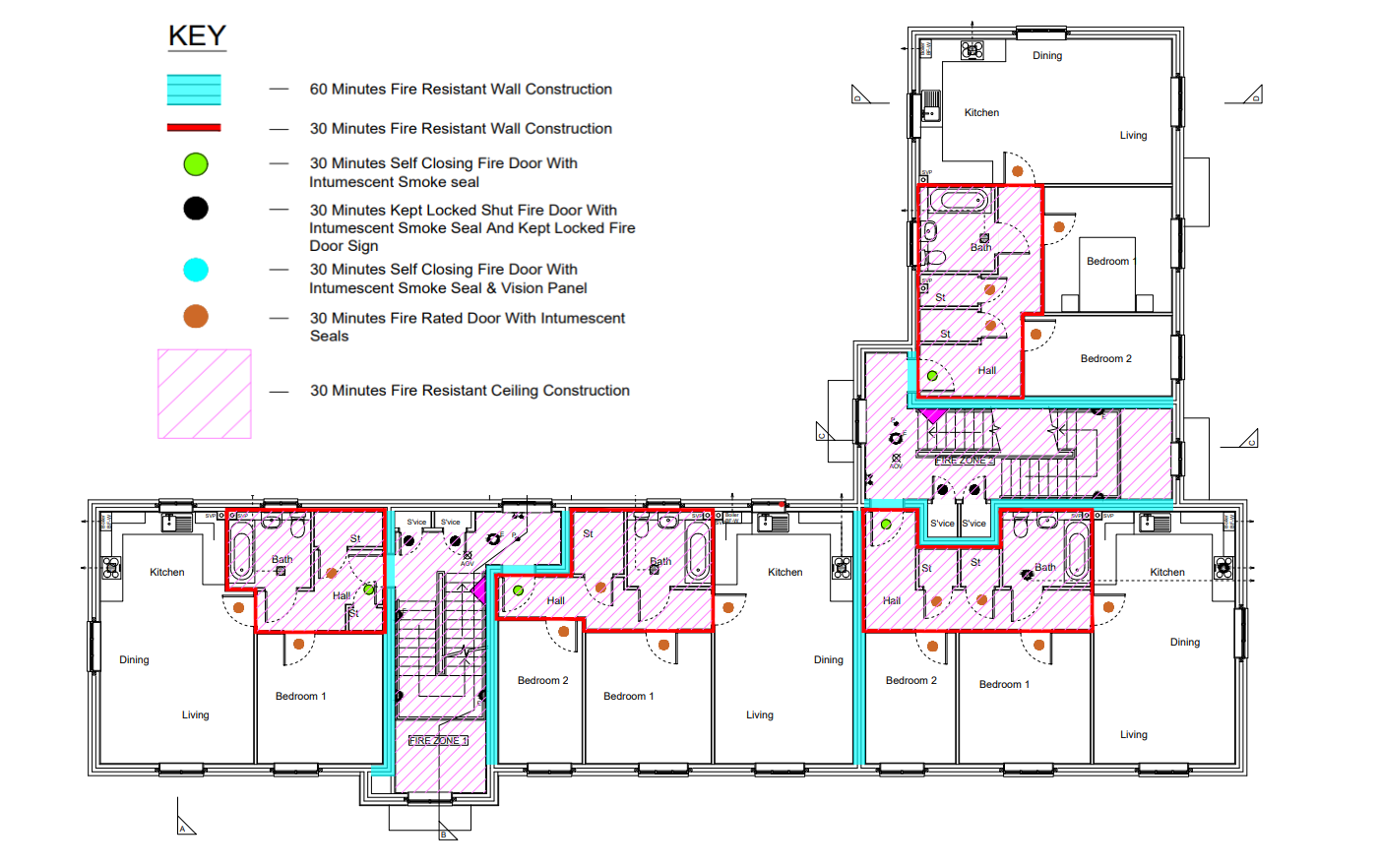

Pictured below is an example floor plan to demonstrate intended compartmentation within a block of apartments.
If you would like further information or if your building requires a
Compartmentation Survey, please do not hesitate to contact us. As part of our
passive fire safety services, we can help assess your building’s fire compartmentation and identify any areas that may require remedial work.
Fire compartmentation surveys are essential to fire safety inspections. Learn how they prevent fire spread and ensure UK compliance with Verus Group.
From installation and ongoing maintenance. Learn how Verus Group Ltd delivers fire protection services and stopping repairs to keep buildings safe.
Discover how passive fire protection and fire‑stopping in London and across the UK ensure safety, compliance, and effective fire‑risk management.

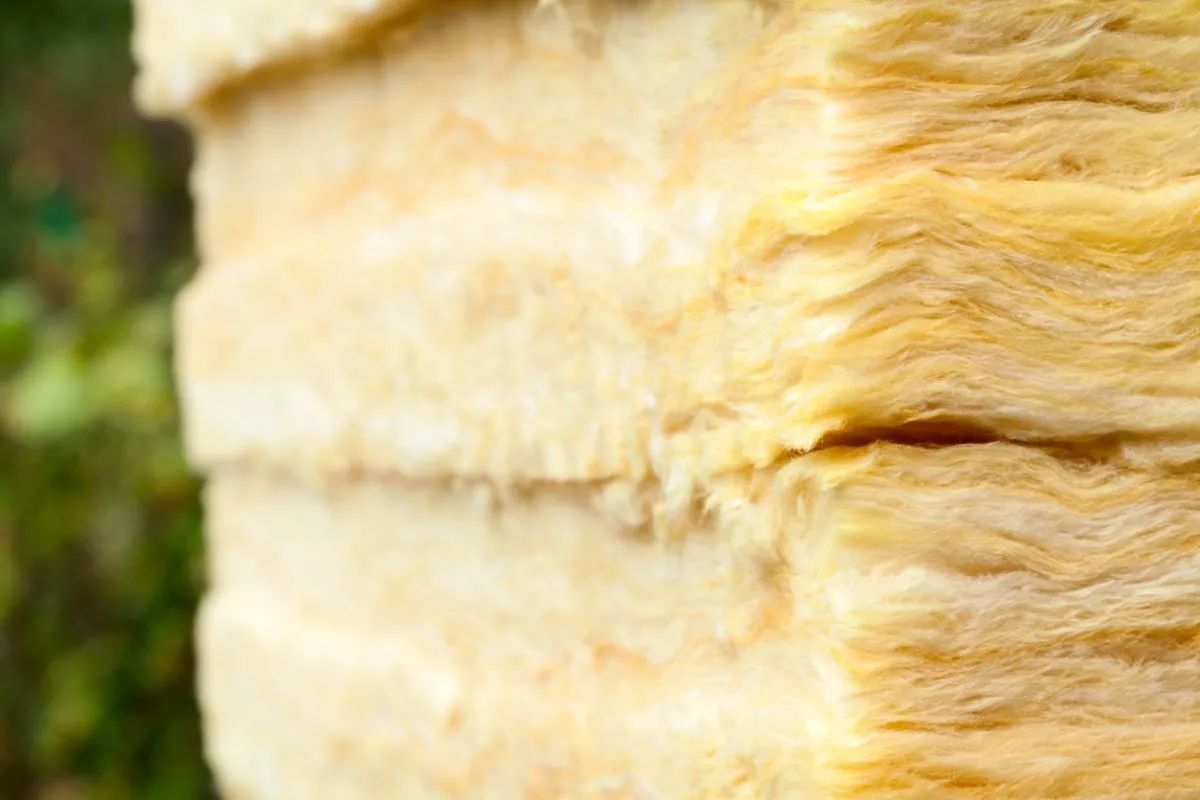

Discover how rockwool mineral insulation enhances fire protection, improves compartmentation, and helps safeguard buildings & occupants, with Verus Group.
Discover why quick and effective fire door repairs are vital for safety and compliance. Protect your building with expert support from Verus Group.
Learn why a professional compartmentation survey is vital for loft spaces. Protect your building with expert fire protection from Verus Group.

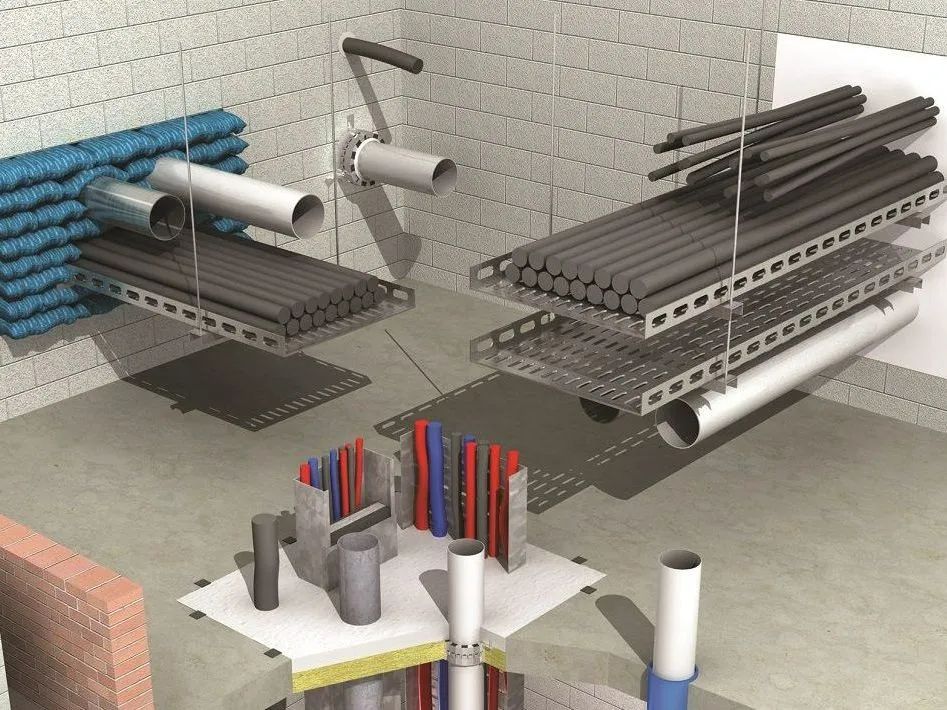

Fire stopping is one of the most fundamental elements of passive fire protection, yet it is often misunderstood or overlooked. At Verus Group , we see first-hand how correctly designed and installed fire stopping systems play a vital role in protecting lives, property, and compliance across all building types. What Is Fire Stopping? Fire stopping refers to the sealing of gaps and penetrations within fire-resistant walls, floors, and compartments. These openings are commonly created by service installations such as pipes, cables, ductwork, and structural joints. Without appropriate fire stopping materials and methods, fire and smoke can spread rapidly through a building, bypassing critical fire barriers. Effective fire stopping helps maintain the integrity of fire compartmentation, allowing occupants time to evacuate safely and limiting damage until emergency services arrive. Why Fire Stopping Is Essential for Safety The primary purpose of fire stopping is to slow the spread of fire and smoke. Smoke inhalation is one of the leading causes of fire-related injuries and fatalities, and poorly sealed service penetrations allow smoke to travel unchecked through a building. By ensuring all fire-resistant elements perform as intended, fire stopping supports safe evacuation routes, protects escape stairwells, and reduces the risk of fire spreading between compartments, floors, or adjoining properties. Compliance and Legal Responsibilities Fire stopping is not just best practice, it is a legal requirement. UK building regulations and fire safety legislation place responsibility on building owners, duty holders, and facilities managers to ensure passive fire protection measures are properly installed and maintained. Inadequate or non-compliant fire stopping can lead to enforcement action, project delays, costly remedial works, and serious liability in the event of a fire. Regular inspections, surveys, and repairs are essential to demonstrate compliance and ongoing due diligence. The Risks of Poor or Incomplete Fire Stopping Common issues we encounter include incorrect materials, poor workmanship, undocumented installations, and damage caused by later building works. Even small gaps can compromise an entire fire compartment. Fire stopping repairs are often required in older buildings, retrofit projects, and sites that have undergone multiple service alterations over time. Identifying these risks early through professional fire stopping surveys can prevent significant safety failures. The Verus Group Approach to Fire Stopping At Verus Group, we deliver fire stopping installation, surveys, and remediation works tailored to each building’s structure and use. Our experienced engineers work across commercial, residential, healthcare, education, and industrial sectors, using tested systems from reputable manufacturers. We take a meticulous approach, ensuring all works are correctly installed, fully documented, and certified. This provides our clients with confidence that their buildings meet current fire safety standards and perform as intended. Protecting Buildings Today and for the Future Effective fire stopping is not a one-time task. Buildings evolve, services change, and materials degrade. Ongoing inspection and maintenance are critical to preserving fire safety throughout a building’s lifecycle. By prioritising fire stopping as part of a wider passive fire protection strategy, organisations can significantly reduce risk and ensure long-term compliance. Speak to Verus Group Today If you are responsible for building safety and want to ensure your fire stopping is compliant, effective, and fully certified, Verus Group is here to help. Contact our expert team today to arrange a fire stopping survey or discuss your project requirements. We are the trusted partner you can rely on for passive fire protection.
